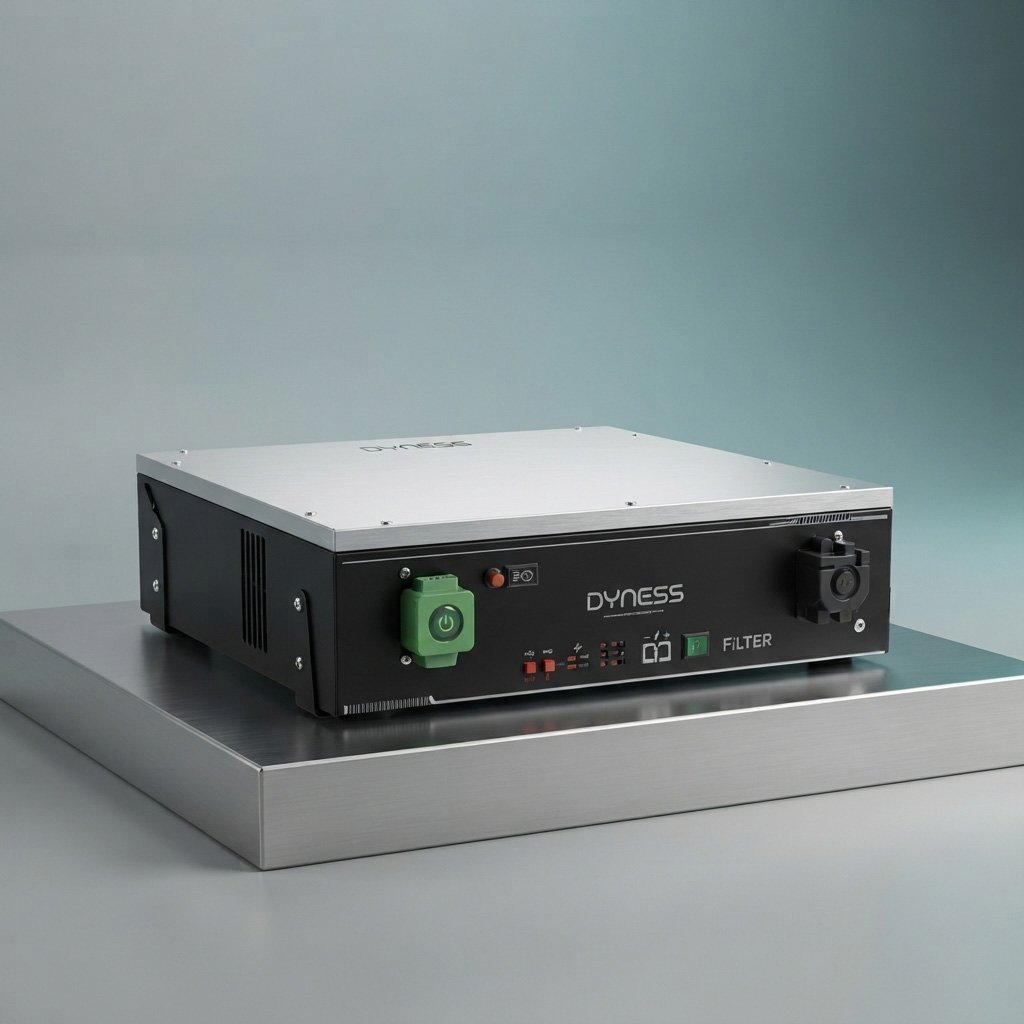

Dyness DL5.0C Lithium Battery

Overview: The DL5.0C is a compact, modular low-voltage energy storage battery designed for residential and small commercial solar systems. It supports up to 50 units in parallel, enabling a scalable capacity range from 5.12 kWh to 256 kWh. The unit features a 3U chassis for easy rack mounting and is compatible with most mainstream solar inverters.

Technical Specifications

• Battery Type: LiFePO4 (LFP) – EV-grade cells
• Nominal Battery Energy: 5.12 kWh
• Nominal Capacity: 100 Ah
• Nominal Voltage: 51.2 V
• Operating Voltage Range: 44.8 – 57.6 V
• Recommended Charge/Discharge Rate: 0.5C
• Max Continuous Charge/Discharge Current: 100 A (peak 500 A / 1s)
• Depth of Discharge (DOD): 95%
• Cycle Life: ≥ 6000 cycles
• Protection Level: IP20
• Communication: CAN (VCAN) / RS485
• Expansion: Up to 50 units in parallel (5.12 – 256 kWh)
• Dimensions (W×D×H): 558 × 545 × 150 mm
• Net Weight: 49.9 kg
• Installation: Wall-mounted, floor-standing, stacked, or 3U server rack
• Monitoring: APP monitoring (optional) – real-time monitoring & remote upgrade
• Warranty: 5-year standard warranty (varies by region)
• Certifications: FCC, CE, LCSA, UL2743, TÜV

Key Features:

• High usable energy and reliable performance for daily cycling.
• Smart BMS protection with cell-level monitoring and balancing.
• Low-temperature cut-off protection and over-charge, over-discharge, over-current, over-temp, and short-circuit protections.
• Compatible with Victron, SMA, DEYE, GoodWe, Growatt, and other mainstream inverters.
