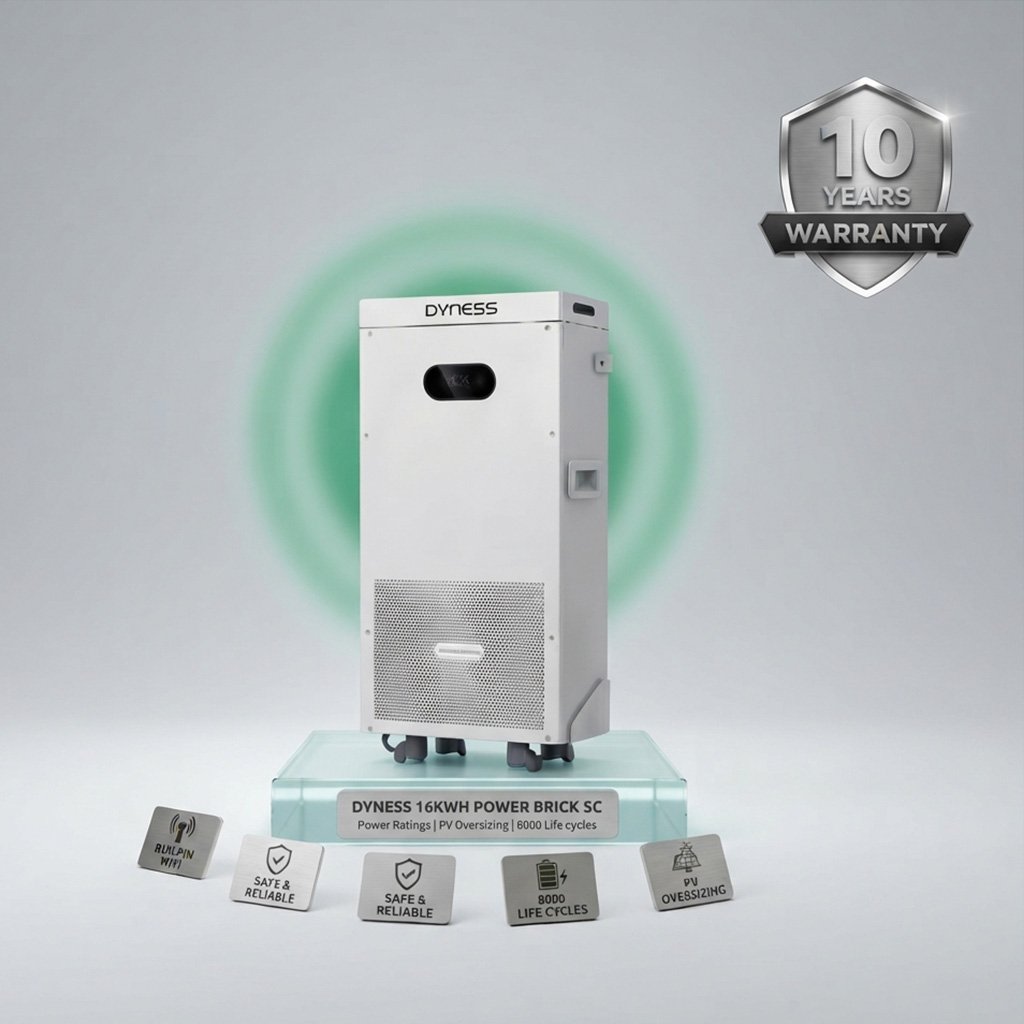

Dyness PowerBrick SC 16kWh battery

Overview: The Dyness PowerBrick SC is a high-capacity, low-voltage energy storage battery designed for residential and small commercial solar systems. It features an integrated LCD screen, built-in Wi-Fi for remote monitoring, and a compact floor-standing design equipped with wheels for easy mobility. With a nominal energy of 16.07 kWh, it provides substantial backup power for homes and businesses. The unit supports up to 50 units in parallel, expanding capacity up to 803.84 kWh.

Technical Specifications

• Battery Type: LiFePO4 (LFP)
• Nominal Battery Energy: 16.07 kWh
• Nominal Capacity: 314 Ah
• Nominal Voltage: 51.2 V
• Operating Voltage Range: 44.8 – 57.6 V
• Recommended Charge/Discharge Rate: 0.45C (140A)
• Max Continuous Charge/Discharge Current: 200 A (0.64C)
• Max Continuous Charge/Discharge Power: 7.168 kW
• Peak Power (2 min): 300 A
• Depth of Discharge (DOD): 95%
• Cycle Life: ≥ 8000 cycles
• Charging Temperature Range: 0 – 55 °C
• Discharging Temperature Range: -20 – 55 °C (optional self-heating for cold climates)
• Protection Level: IP20
• Communication: CAN / RS485
• Expansion: Up to 50 units in parallel (16.07 – 803.84 kWh)
• Dimensions (W×D×H): 435 × 233 × 857 mm
• Net Weight: Approximately 116 kg
• Installation: Floor-standing with wheels, wall-mounted (optional)
• Monitoring: Built-in Wi-Fi, LCD display, APP monitoring
• Warranty: 10 years
• Certifications & Safety Standards: UN38.3, IEC 62619, CE, RoHS
• Compatible Inverters: Deye, Solis, Growatt, Victron, GoodWe, SMA, and other mainstream hybrid inverters

Key Features:

• Built-in Wi-Fi & LCD Display: Real-time monitoring of voltage, current, state of charge (SOC), and system status directly on the screen or via a smartphone app.
• Enhanced Safety: Optional integrated aerosol fire suppression system that detects and extinguishes fire within seconds. Smart BMS provides protection against overcharge, over-discharge, over-current, short circuit, and cell imbalance.
• Compact & Mobile: Floor-standing design with four swivel wheels allows one person to easily move and install the unit.
• High Scalability: Supports parallel connection of up to 50 units, enabling expansion from 16.07 kWh to 803.84 kWh to meet growing energy demands.
• Long Life Cycle: 8000+ cycles ensures over 10 years of reliable daily operation.
